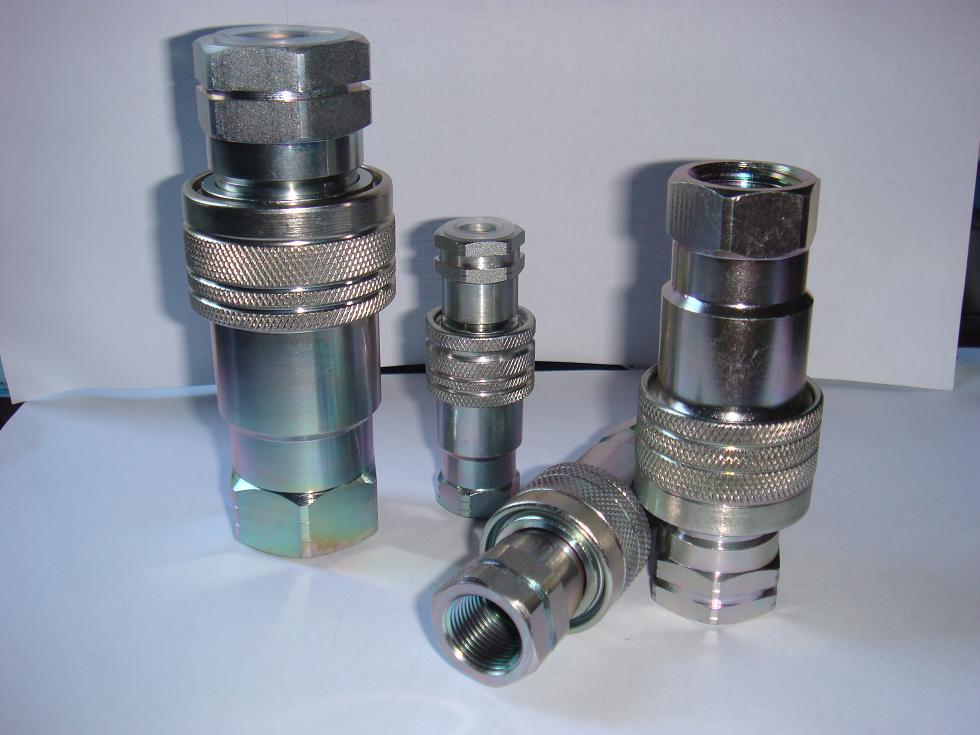

Push and Pull Type Hydraulic Quick Coupling
Materials:
1) Coupler: steel (Znic chromate-plating)
2) Nipple: Hardened steel (Znic chromate-plating)
Features:
3) Meets the requirements of ISO7241-1-Series A.
4) Double acting sleeve(push-pull) can push-connecting or
pull-disconnection.
5) Modular construction, broad choice of end, ,meets internatiaonal
standard, such as ISO, DN.SAE.BS
6) Critical parts are induction hardened for durability.
7) Couplers and nipples are precision machined from solid bar
stock.
8) Dust caps available
Hydraulic connections are different hydraulic components (pumps,
transmission lines, reversing valves, stop valves),
Hydraulic motors, hydraulic cylinders, and some auxiliary elements,
such as level gauges, thermometers, pressure gauges, etc., are
joined together to form a closed loop hydraulic system, which is a
connecting function of an accessory.
The hydraulic connector can withstand high pressure, if the
hydraulic tubing joints impact sand holes, small holes or pressure
is too high can not afford so much pressure and blasting is quite
large.
Hydraulic joints are divided into two major categories: hose
joints, hard pipe joints
Each of these two categories is divided into several categories:
1) hose connector divided into integrated hose connectors, extruded
hose connectors, InteriorLocking
Hose fittings, detachable hose couplings, etc.
2) hard pipe joint is also called transition joint. It is divided
into DIN card sleeve type and metric thread joint,
Inch screw thread joint, thread joint, flange, welding joint mining
etc.
Hydraulic joints are widely used in military, energy,
petrochemical, power, ship, automobile and rail transportation,
In the hydraulic pipeline system of construction machinery, mining,
metallurgy, steel works, ocean engineering, etc.
