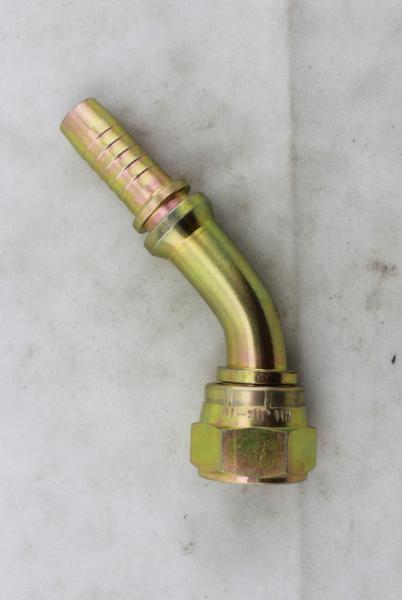

Parker Pipe Hydraulic Inc American Standard elbow jic hydraulic
hose pipe fitting 26741
1. Swaged Metric Fittings Mertic Flat Seal Fittings
Metric Multiseal Fittings
Metric 60°Cone Seal Fittings
Metric 74°Cone Seal Fittings
Metric 24°Cone O-RING Seal L..T Fittings
Metric 24°Cone O-RING Seal H.T.Fittings
Metric Standpipe Straight Fittings
JIS Metric 60°Cone Seal Fitting
2. Swaged British Fittings BSP O-RING Seal Fittings
BSP Flat Seal Fittings
BSP Multiseal Fittings
BSP 60°Cone Seal Fittings
BSPT Fittings
JIS BSP 60°Cone Seal Fittings
3. Swaged American Fittings SAE O-RING Seal Fittings
ORFS Flat Seal Fittings
NPSM 60°Cone Seal Fittings
JIC 74°Cone Seal Fittings
NPT Fittings SAE Flange L.T. Fittiings
SAE Flange H.T.Fittings
4. Metric Adapters Metric Thread O-RING Face Seal Adapters
Metric Thread Bite Type Tube Adapters
JIS Metric Thread 60°Cone Adapters
Metric Thread 74°Cone Flared Tube Adapters
5. British Adapters BSP Thread 60°Cone Adapters
JIS BSP Thread 60°Cone Adapters
BSPT Thread Adapters
8. American Adapters
ORFS Adapters JIC 74°Cone Flared Tube Adapters
NPT Thread Adapters
Application:
Automobile,Engineering Machinery,Lathe,Agriculture
Machine,Mining,Spurting the Oil Paint, Metallurgy petroleum,
Construction, Chemicals,Textile, Ships, Ocean Military, Recreation,
Electronics and so forth.
| Part No. | Thread E | | WINNER PART NO. |
| |
| 64-07-04 (E45°) | 7/16"×20 | | 26741-04-04 |
| 64-08-04 (E45°) | 1/2"×20 | | 26741-05-04 |
| 64-08-05 (E45°) | 1/2"×20 | | 26741-05-05 |
| 64-09-04 (E45°) | 9/16"×18 | | 26741-06-04 |
| 64-09-06 (E45°) | 9/16"×18 | | 26741-06-06 |
| 64-12-06 (E45°) | 3/4"×16 | | 26741-08-06 |
| 64-12-08 (E45°) | 3/4"×16 | | 26741-08-08 |
| 64-14-08 (E45°) | 7/8"×14 | | 26741-10-08 |
| 64-14-10 (E45°) | 7/8"×14 | | 26741-10-10 |
| 64-17-08 (E45°) | 1.1/16"×12 | | 26741-12-08 |
| 64-17-10 (E45°) | 1.1/16"×12 | | 26741-12-10 |
| 64-17-12 (E45°) | 1.1/16"×12 | | 26741-12-12 |
| 64-19-12 (E45°) | 1.3/16"×12 | | 26741-14-12 |
| 64-21-12 (E45°) | 1.5/16"×12 | | 26741-16-12 |
| 64-21-16 (E45°) | 1.5/16"×12 | | 26741-16-16 |
| 64-26-16 (E45°) | 1.5/8"×12 | | 26741-20-16 |
| 64-26-20 (E45°) | 1.5/8"×12 | | 26741-20-20 |
| 64-30-24 (E45°) | 1.7/8"×12 | | 26741-24-24 |
| 64-40-32 (E45°) | 2/1/2"×12 | | 26741-32-32 |
Female fittings
1) Material:Carbon steel
2) Finish:yellow Zinc plating
3) Standards:SAE,JIC,BSP,NPT,DIN
4) high quality
Characteristics
1. Application: Angricht fittings are parts used to connect and
seal pipe, tube and air hose in pneumatic systems
2. Connection method:quick coupling, bit type fitting, threading
fitting etc
3. Material: brass, stainless steel, carbon steel or to customer's
specifications
4. Sealing method: regular R and NPT threading for connection and
sealing, tefflon is available forspecial requirements; O-ring for
straight threading sealing
5. Items recommended: the brass quick fitting sery is newly
designed for high working pressure standard and rusty-free with its
nickel plated surface
6. Different surface finish for your choice: CHROME PLATED,NICKEL
PLATED,COPPER COLOR,ETC
7. Different thread for your choice: BSPP,BSPT,NPT,METRIC
8. Different diameter tube for your choice:METRIC,INCH
